Description
Description
Radon-Tight Sump Pit Cover for Sub-Slab Depressurization

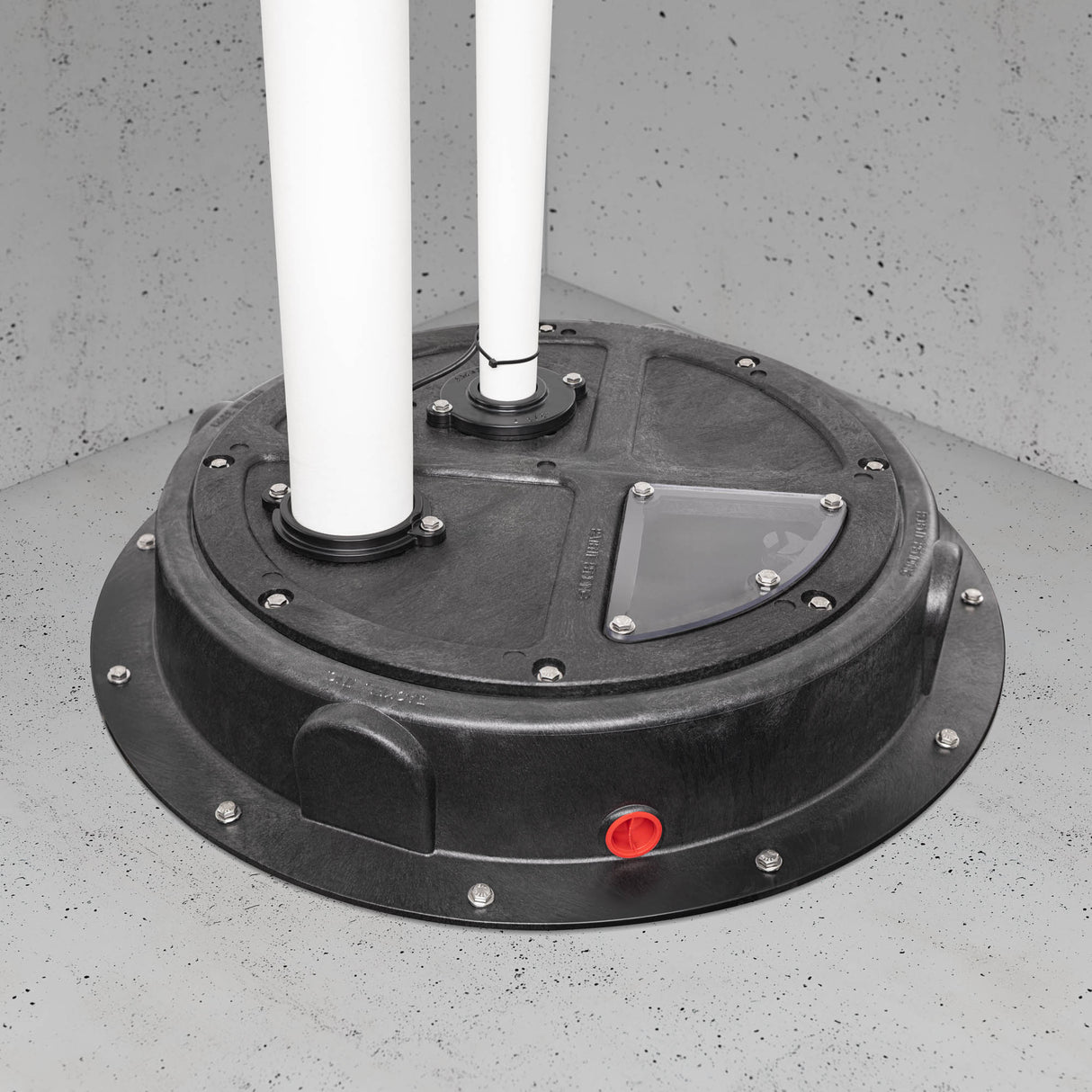

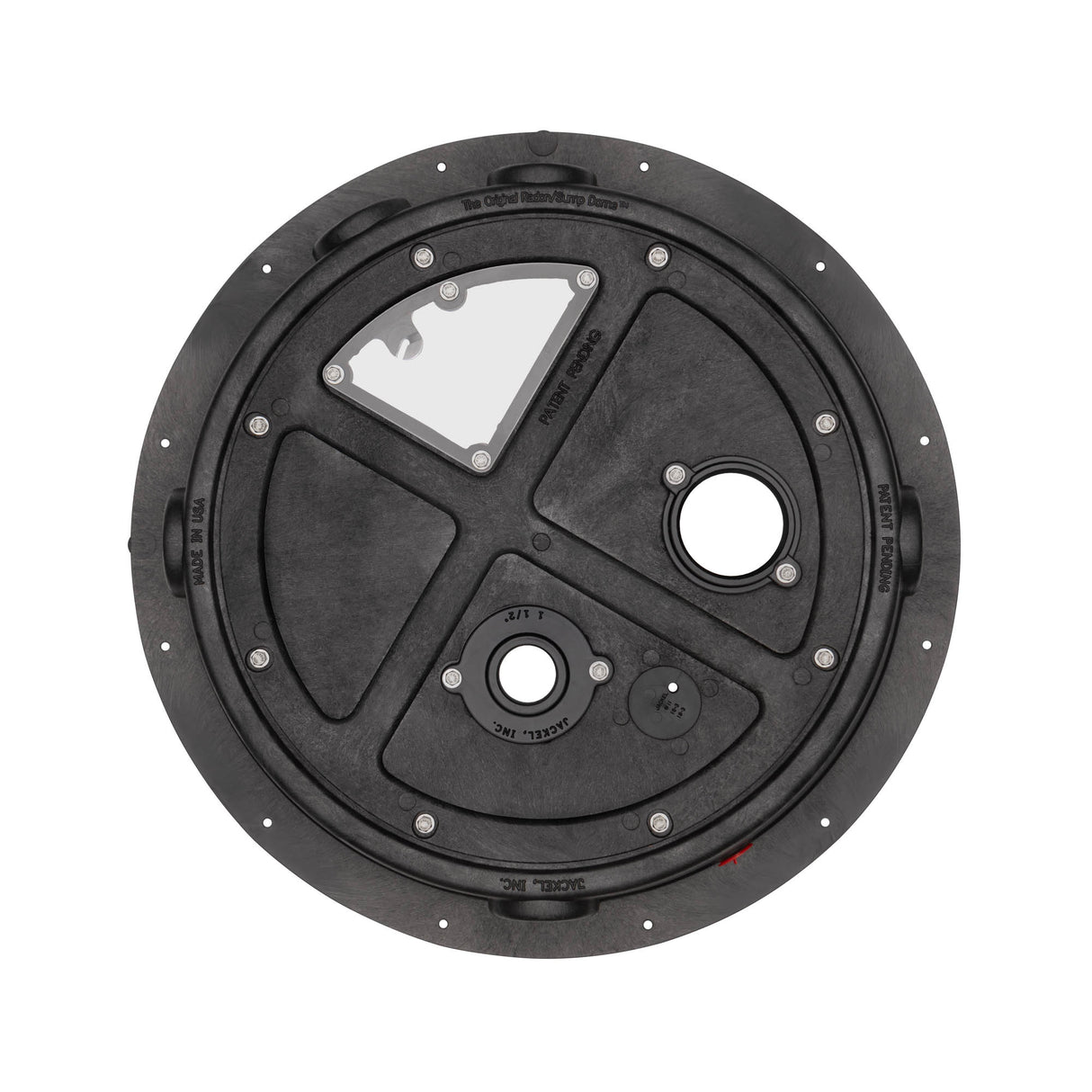

The Jackel SMR16101-CV is a heavy-duty HDPE sump pit cover engineered specifically for radon mitigation systems. Its radon-tight structural foam construction creates an airtight seal over the sump pit, integrating the sump pump into your sub-slab depressurization system without losing suction.
Features
- Radon-tight seal — integrates sump pit into sub-slab depressurization system
- Heavy-duty HDPE structural foam construction — built to last
- One-piece removable cover — exceptionally strong and durable
- Pre-punched discharge and vent flanges for easy piping hookup
- Removable access cover for sump pump maintenance
- Cord grommet for pump power cord pass-through
- Reusable seal — can be removed and reinstalled for pump service
- Universal fit — designed to cover all installed basins up to 24" ID
- Stainless steel bolts and washers included
- Made in the USA
Technical Specifications
| Model | SMR16101-CV |
| Outer Diameter | 28" |
| Inner Diameter | 24" |
| Bolt Circle Diameter | 26-1/2" |
| Height | 4" |
| Weight | 12 lbs (5.4 kg) |
| Cover Material | HDPE structural foam |
| Riser Material | HDPE structural foam |
| Flange Material | ABS or PVC |
| Hardware | Stainless steel bolts & washers (included) |
| Country of Origin | USA |

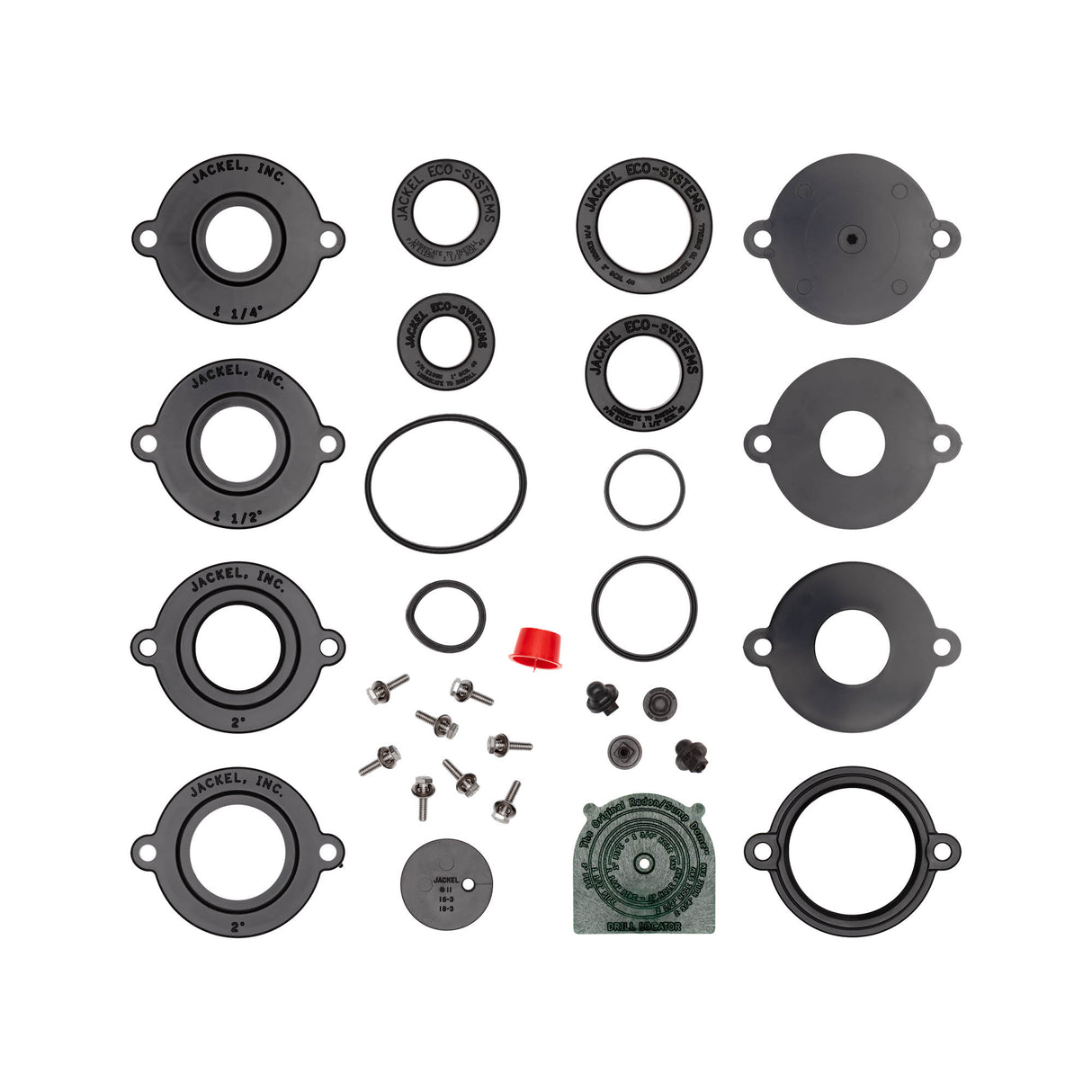

What's Included
- Sump dome cover with discharge and vent flanges
- Removable access cover
- Cord grommet
- Reusable seal
- Stainless steel bolts and washers
Application
For use in passive or active radon mitigation systems, or to retrofit an existing basement sump system. Riser attaches directly to the basement floor to create a radon-tight seal. No need to dig up the floor — simply remove the old cover and install the dome over the existing opening.
